Специализированные интерфейсы PCI9030-AA60PI F

pci9030-aa60pi f broadcom limited
главная/полупроводники - микросхемы/драйверы и интерфейсы/устройства pci / pcie/pci9030-aa60pi f broadcom limited
арт.:f1623122
нет данных

отложить

сравнить
pci и pcie устройство, i/o ускоритель, pci 1.0, pci 1.1, pci 2.2, питание 3.3в до 5в, qfp-176
документация
technical data sheet en

брендbroadcom limited наименованиеpci9030-aa60pi f цена заштука страна производстваjapan складfarnell
описание
характеристики
pci и pcie устройство, i/o ускоритель, pci 1.0, pci 1.1, pci 2.2, питание 3.3в до 5в, qfp-176

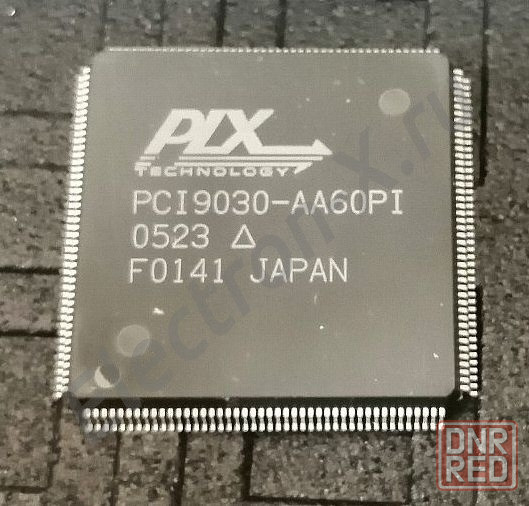

the pci9030-aa60pi f is a pci smartarget i/o accelerator in 17 pin qfp package. this device provides best possible performance and flexibility to simplify the design using smartarget technology and set of advanced features. the pci9030 is perfect solution for applications such as migrating legacy designs to pci, compact pci hot swap designs and smaller form factor designs. it is a pci v2.2 compliant 32bit, 33mhz target interface chip enabling pci burst transfers up to 132mbytes/second.
3.3v, 5v tolerant pci signalling
up to 60mhz local bus operation enabling burst transfers up to 240mbytes/second
pci target read ahead mode
pci target programmable burst
pci target delayed write
posted memory writes
programmable 32bit local bus operates up to 60mhz
supports 5 pci to local address spaces
big/little endian conversion
four programmable chip selects
